RSBRS02AA is a compact size, cost effective single-mode Bluetooth low energy module based on RF-star 256 KB flash SoC RS02A1-A chip with super low power consumption (BLE TX with LDO: 10.6 mA @ 0 dBm, BLE RX with LDO: 8.8 mA @ 1.0 Mbps), good noise reduction, better sensitivity, robust transmission distance, and high reliability.

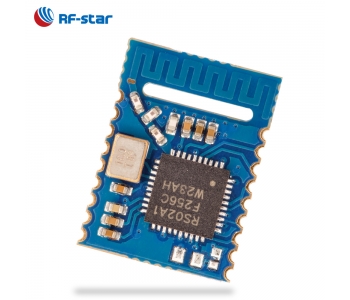

RSBRS02AA is a compact size, cost-effective single-mode Bluetooth low energy module based on RF-star 256 KB flash SoC RS02A1-A chip with super low power consumption (BLE TX with LDO: 10.6 mA @ 0 dBm, BLE RX with LDO: 8.8 mA @ 1.0 Mbps), good noise reduction, better sensitivity, robust transmission distance, and high reliability. The module integrates a 16 MHz crystal, an RF matching filter, a power filter, and a meander line inverted-F PCB antenna. It supports BLE stack v4.2 and is preprogrammed with an easy-to-integrate serial interface communication protocol. RSBRS02AA is pin-to-pin compatible with RSBRS02AI.
Parameters of RSBRS02AA
Chipset | RS02A1-A |
Supply Power Voltage | 1.8 V ~ 3.6 V, recommended to 3.3 V |
Modulation | GFSK |
Frequency | 2402 MHz ~ 2480.0 MHz |
Chanel Number | 40 (channel spacing of 2 MHz) |
Transmit Power | -20.0 dBm ~ +7.0 dBm |
Receiving Sensitivity | -94 dBm |
GPIO | 13 |
Crystal | 16 MHz |
ROM | 64 KB |
SRAM | 32 KB |
Flash | 256 KB |
Package | SMT Packaging |
Frequency Error | ±20 kHz |
Dimension | 15.1 mm x 11.2 mm x (1.50 ± 0.1) mm |
Type of Antenna | PCB Antenna |
Operating Temperature | -40 ℃～ +85 ℃ |
Storage Temperature | -40 ℃～ +125 ℃ |
Hibernation Current | 5 μA (Test software RS02A1-test.hex) |
Current of Broadcast Event | 90 μA (Broadcast interval: 200 ms @ 0 dBm) |
Current of Connection Event | 0.35 mA (Connection interval: 20 ms @ 0 dBm) |
Pin | Name | Chip Pin | Pin Type | Remarks |
1 | GND | GND | Ground | Ground |
2 | VCC | VCC | VCC | Power supply: 1.8 V ~ 3.6 V; Recommended to 3.3 V |
3 | P15 | P15 | I/O | |
4 | P24 | P24 | I/O | |
5 | RESET | RSTN | RESTORE | Active low |
6 | P06 | P06 | I/O | |
7 | SWC | SWCLK | SWCLK | Connect J-Link simulator SWCLK |
8 | SWD | SWD | SWDIO | Connect J-Link simulator SWDIO |
9 | P21 | P21 | I/O | |
10 | P10 | P10 | I/O | |
11 | P11 | P11 | I/O | |
12 | P12 | P12 | I/O | |
13 | P14 | P14 | I/O | |
14 | P16/BRTS | P16 | I/O | |
15 | P17/BCTS | P17 | I/O | |
16 | P27/TX | P27 | I/O | |
17 | P28/RX | P28 | I/O | |
18 | P03/ADC | P03 | I/O |
