Certified Modules

Seamlessly Connect the World Easily

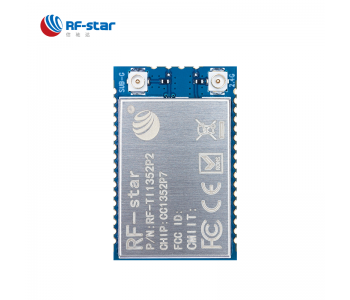

RF-TI1352P2

RF-TI1352P2 is RF-star CC1352P7 SimpleLink Sub-1G + 2.4GHz multi-band module with an integrated power amplifier for long-range applications, such as smart meters, wireless environmental sensors, HVAC system controller, gateway, etc.

Chip： CC1352P7
Protocols： Thread, Zigbee?, Matter, Bluetooth? 5.3 Low Energy, Sub-1 GHz and 2.4 GHz
Core： 48 MHz ARM? Cortex?-M4F
Key Features： Power Amplifier, DMM driver, Matter,dual-band radio
TX Power： +20 dBm
Distance： 1400 m @ Sub-1G (external glue stick antenna)

Get Samples Contact Us

Product Description

CC1352P7 868MHz 915MHz 2.4GHz Multi-band RF Module RF-TI1352P2 with PA and IPEX Connectors for Grid Meters

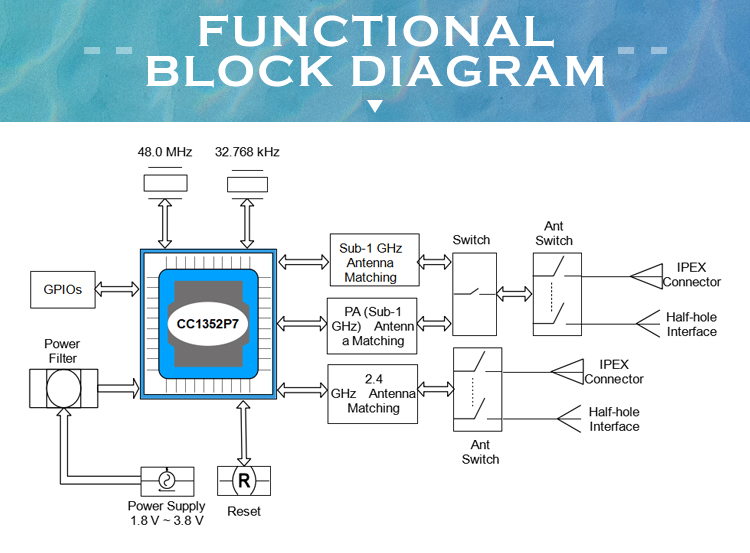

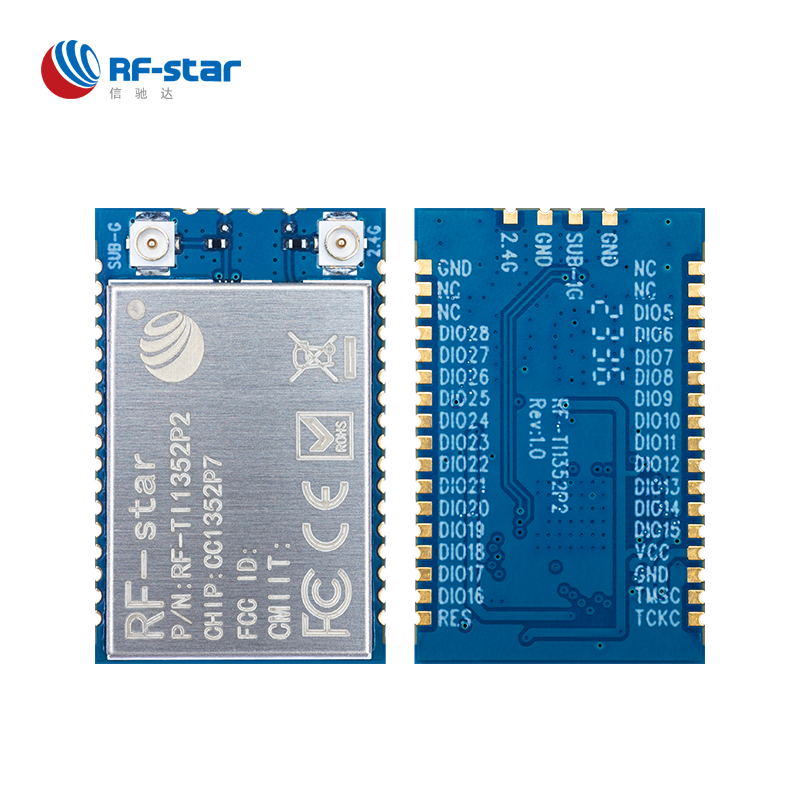

RF-TI1352P2 is an RF module based on TI SoC CC1352P7 with an integrated power amplifier. It integrates a 48 MHz and a 32.768 kHz crystal, a 256 KB ROM, a 704 KB Flash, and the IPEX connectors and half-hole RF output pins of different radio frequencies to guarantee the external antenna connection. Its ARM^? Cortex^?-M4F core application processor optimized for long-range and low-power. It features small size, robust connection distance, and rigid reliability. The multi-band module supporting multiprotocol for both Sub-1 GHz and 2.4 GHz through a DMM driver for Thread, Zigbee^?, Matter, Bluetooth^? 5.3 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY^?, proprietary systems, including the TI 15.4-Stack (Sub-1 GHz and 2.4 GHz). 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design.
