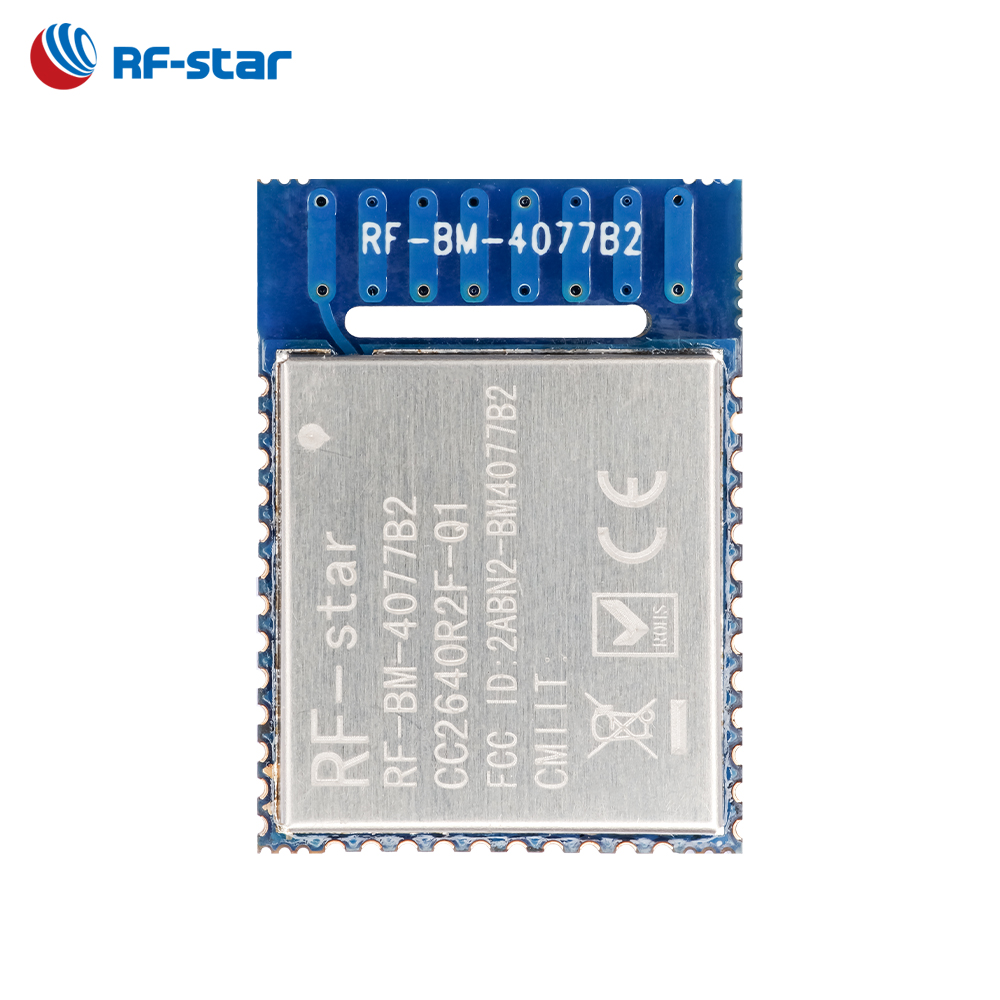

RF-BM-4077B2 industry temperature Bluetooth 5.0 TI CC2640R2F-Q1 module for automotive BLE
RF-BM-4077B2 is an RF module based on TI SimpleLink? Bluetooth? low energy MCU of CC2640R2F-Q1 for BLE 4.2 and BLE 5.0 automotive applications. The module operates on a 32-bit ARM? Cortex?-M3 processor that runs at 48.0 MHz as the main application processor and includes the Bluetooth 4.2 low energy controller and host libraries embedded in ROM. It integrates a 24.0 MHz crystal and a 32.768 kHz crystal, 275 KB nonvolatile memory (including 128 KB in-system programmable flash), 28 KB system SRAM, an LC balun, power filter and on-board antenna. It features high performance of overall system, ultra-low power consumption, robust connection distance, rigid reliability, and up to wide temperature range of -40 °C to +105 °C, which can greatly increase the reliability and security.
Parameters of RF-BM-4077B2
Chipset | CC2640R2F-Q1 |
Supply Power Voltage | 1.8 V ~ 3.8 V, recommend to 3.3 V |
Frequency | 2402 MHz ～ 2480MHz |
Maximum Transmit Power | -21 dBm ~ +5.0 dBm (typical: 0 dBm) |
Receiving Sensitivity | -97 dBm |
RAM | 20 KB |
FLASH | 128 KB |
GPIO | 31 |
Power Consumption (Active-Mode) | RX current: 6.1 mA TX current: 7.0 mA @ 0 dBm 9.3 mA @ 5 dBm MCU: 61 μA/MHz MCU: 48.5 CoreMark/mA Sensor Controller：0.4 mA + 8.2 μA/MHz Standby: 1.3 μA(RTC running and RAM / CPU retention)
Shutdown” 150 nA (wake up on external events) |
Crystal | 24 MHz, 32.768 kHz |
Package | SMT packaging |
Communication Interface | UART, SPI, I2C, I2S, ADC |
Dimension | 23.5 mm × 17.0 × (2.2 ± 0.1) mm |
Type of Antenna | PCB Antenna |
Operating Temperature | -40 ℃～ +105 ℃ |
Storage Temperature | -55 ℃～ +125 ℃ |

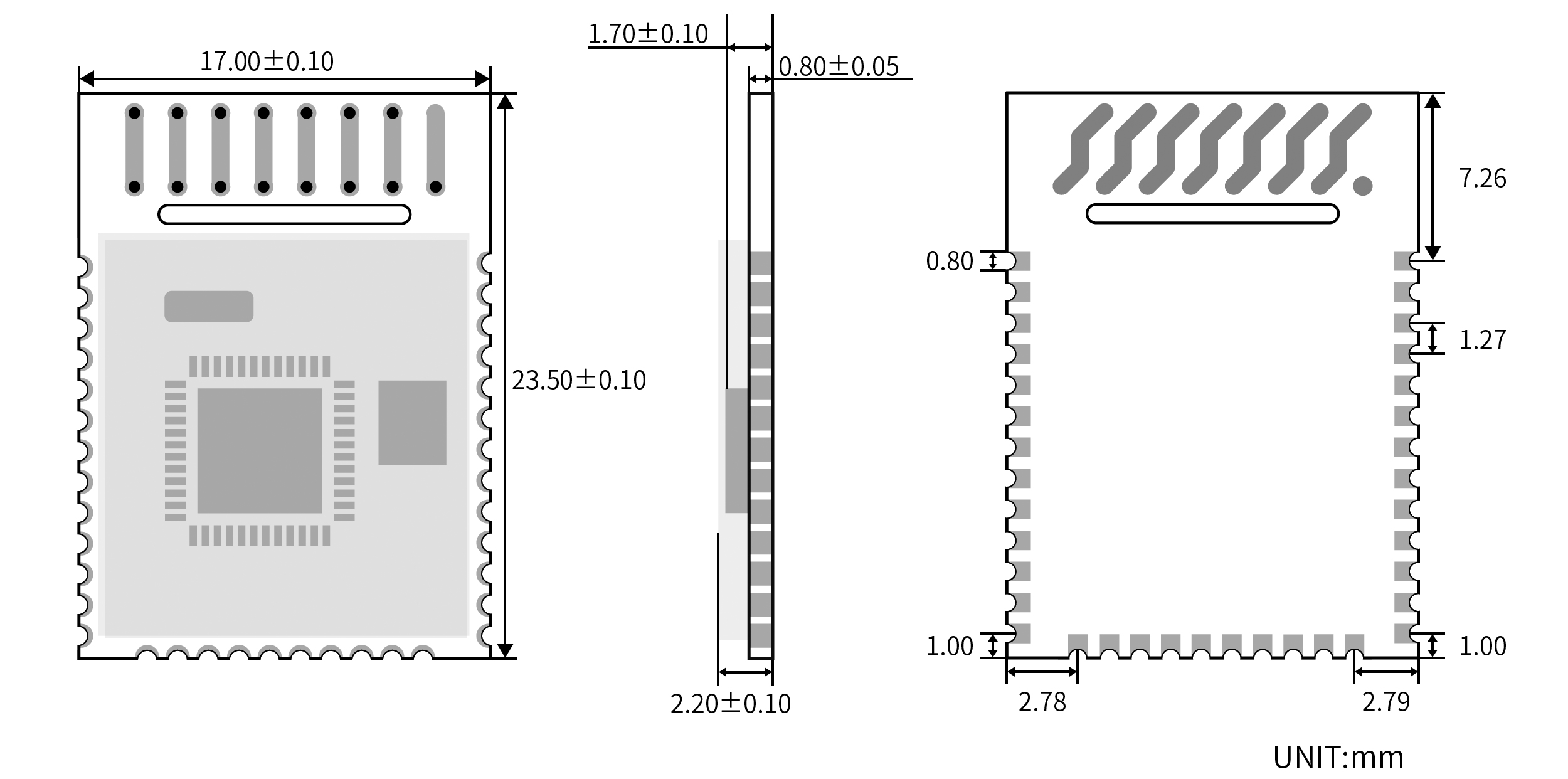

Recommended Footprint
Pin Attributes
Pin Functions of RF-BM-4077B2
Pin | Name | Chip Pin | Pin Type | Description |
1 | P00 | DIO_0 | I/O | GPIO, Sensor Controller |
2 | P01 | DIO_1 | I/O | GPIO, Sensor Controller |
3 | P02 | DIO_2 | I/O | GPIO, Sensor Controller |
4 | P03 | DIO_3 | I/O | GPIO, Sensor Controller |
5 | P04 | DIO_4 | I/O | GPIO, Sensor Controller |
6 | P05 | DIO_5 | I/O | GPIO, Sensor Controller, high-drive capability |
7 | P06 | DIO_6 | I/O | GPIO, Sensor Controller, high-drive capability |
8 | P07 | DIO_7 | I/O | GPIO, Sensor Controller, high-drive capability |
9 | P08 | DIO_8 | I/O | GPIO |
10 | P09 | DIO_9 | I/O | GPIO |
11 | P10 | DIO_10 | I/O | GPIO |
12 | P11 | DIO_11 | I/O | GPIO |
13 | P12 | DIO_12 | I/O | GPIO |
14 | P13 | DIO_13 | I/O | GPIO |
15 | P14 | DIO_14 | I/O | GPIO |
16 | P15 | DIO_15 | I/O | GPIO |
17 | JTAG_TMSC | JTAG_TMSC | － | JTAG TMSC, high-drive capability |
18 | JTAG_TCKC | JTAG_TCKC | － | JTAG TCKC |
19 | P16 | DIO_16 | I/O | GPIO, JTAG_TDO, high-drive capability |
20 | P17 | DIO_17 | I/O | GPIO, JTAG_TDI, high-drive capability |
21 | P18 | DIO_18 | I/O | GPIO |
22 | P19 | DIO_19 | I/O | GPIO |
23 | P20 | DIO_20 | I/O | GPIO |
24 | P21 | DIO_21 | I/O | GPIO |
25 | P22 | DIO_22 | I/O | GPIO |
26 | P23 | DIO_23 | I/O | GPIO, Sensor Controller, Analog |
27 | P24 | DIO_24 | I/O | GPIO, Sensor Controller, Analog |
28 | P25 | DIO_25 | I/O | GPIO, Sensor Controller, Analog |
29 | P26 | DIO_26 | I/O | GPIO, Sensor Controller, Analog |
30 | P27 | DIO_27 | I/O | GPIO, Sensor Controller, Analog |
31 | P28 | DIO_28 | I/O | GPIO, Sensor Controller, Analog |
32 | P29 | DIO_29 | I/O | GPIO, Sensor Controller, Analog |
33 | P30 | DIO_30 | I/O | GPIO, Sensor Controller, Analog |
34 | VCC | VCC | VCC | Power supply 1.8 V ~ 3.8 V, Recommend 3.3 V |
35 | GND | GND | GND | Ground |
36 | RESET | RESET_N | RESET | Reset, active low, no internal pullup. |
