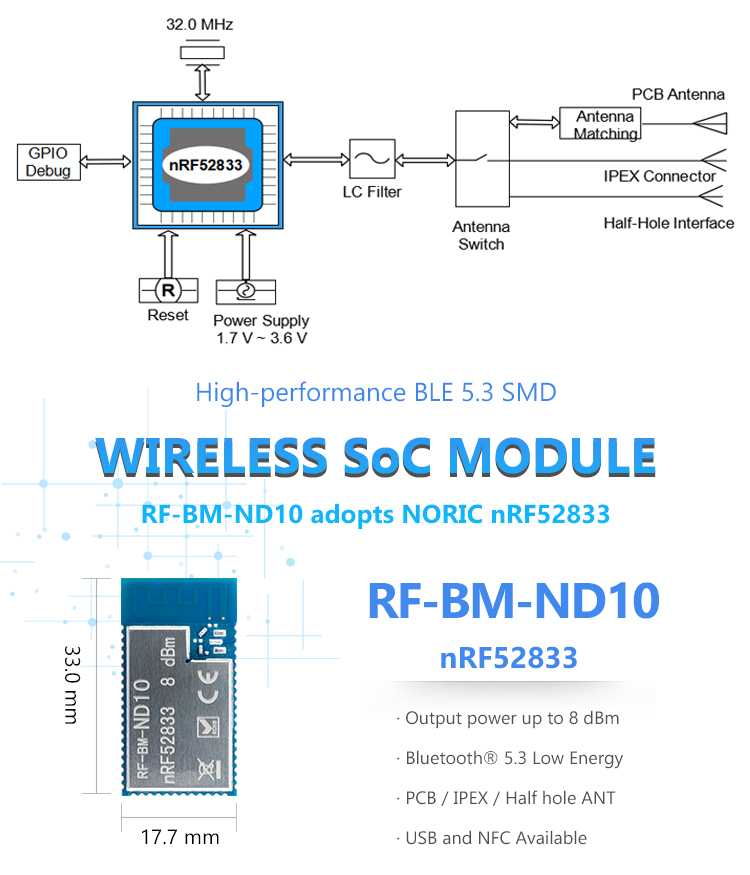

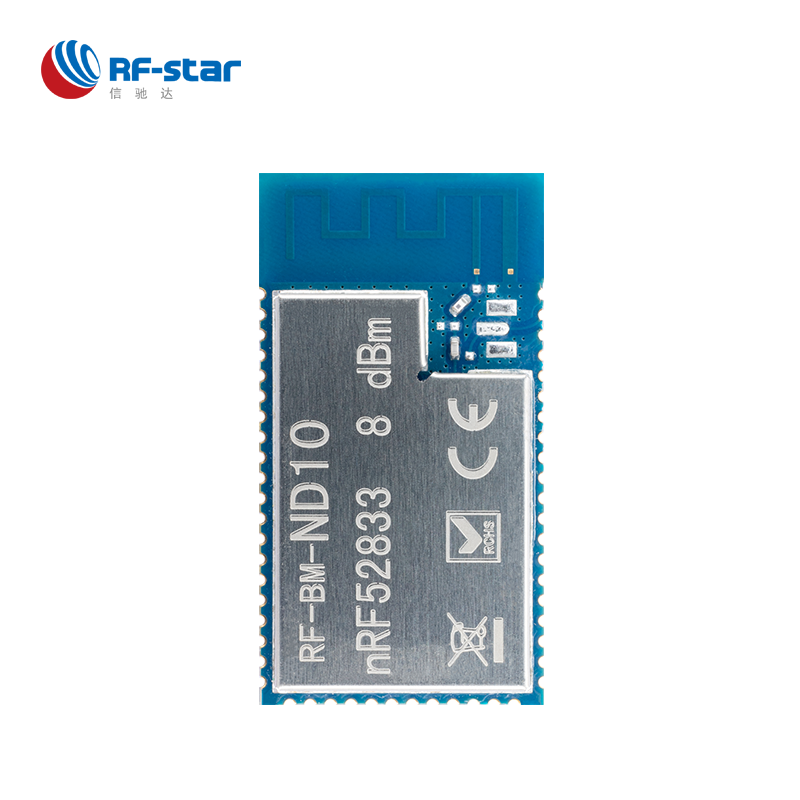

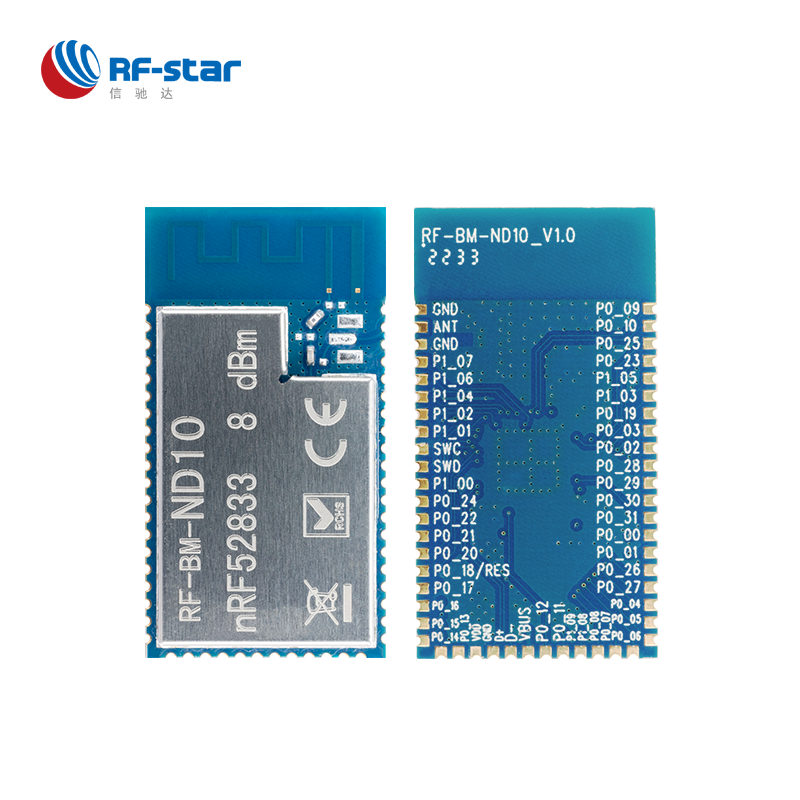

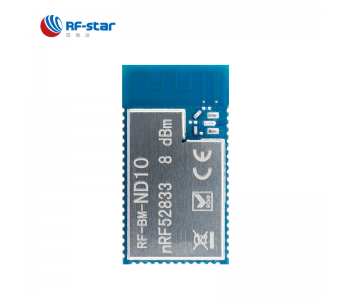

RF-BM-ND10 is RF-star 2.4 GHz Bluetooth LE 5.3 ZigBee Thread AoA AoD wireless transceiver receiver module based on Nordic nRF52833 soc for smart home and location.

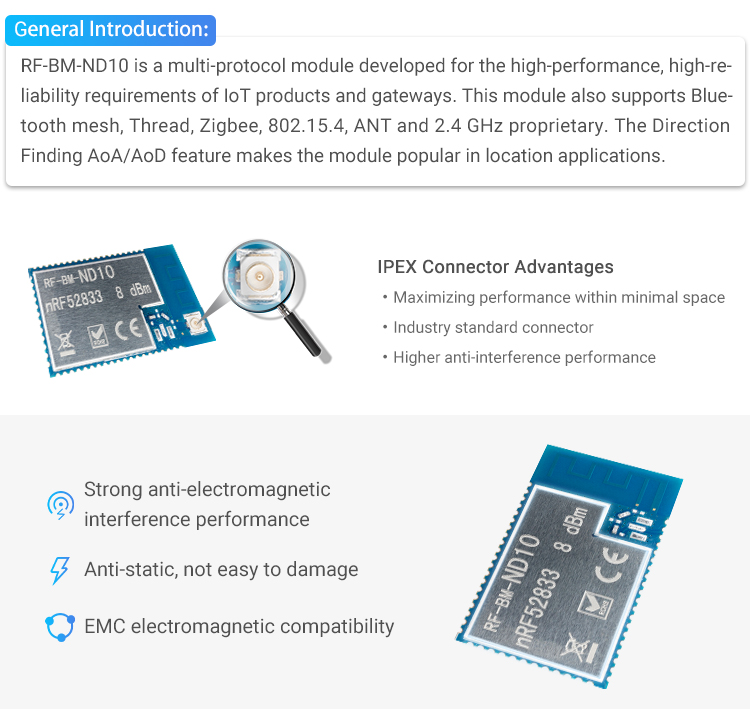

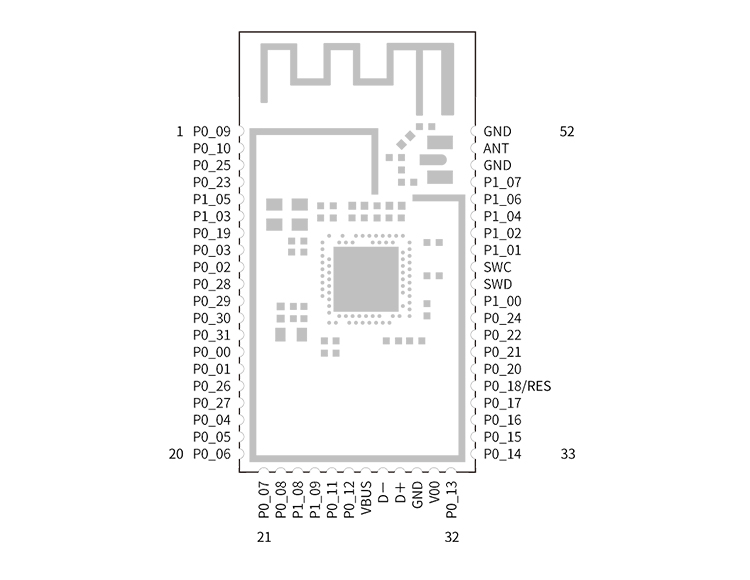

RF-BM-ND10 is a multiprotocol Radio Frequency module based on Nordic nRF52833 SoC. It integrates a 32 MHz crystal, 512 KB Flash, and 128 KB RAM. Its 64 MHz ARM? Cortex?-M4 with FPU core processor can operate at an extremely low current at flexible power modes. Its 2.4 GHz RF transceiver is compatible with Bluetooth 5.3 Low Energy, Bluetooth Mesh, Direction Finding AoA and AoD, Thread, ZigBee and NFC. Up to 8 dBm TX power gives the module a robust coverage range. The module has a wide range of analog and digital interfaces such as NFC-A, ADC, Full-speed 12 Mbps USB 2.0, High-speed 32 MHz SPI, UART/SPI/TWI, PWM, I2S and PDM, which makes it applicable in several applications over USB with low power consumption.

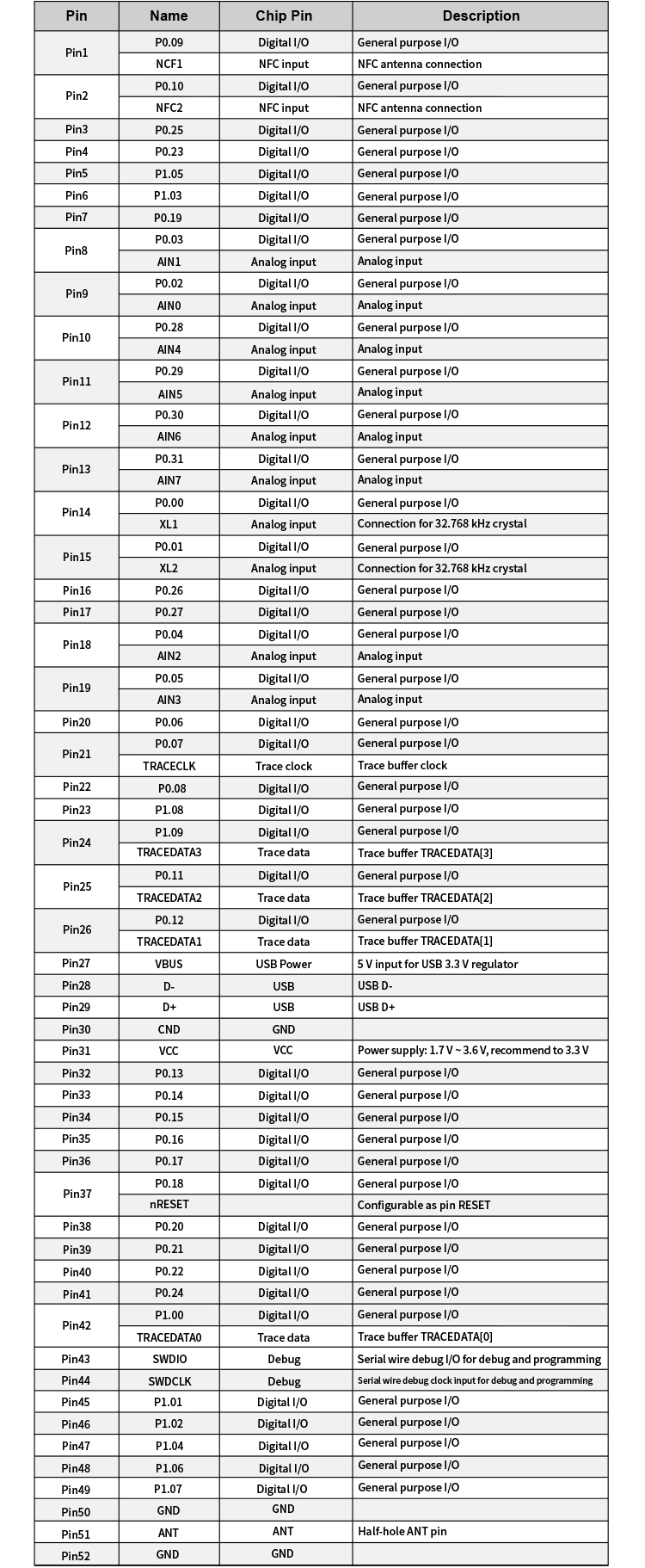

Table 1. Parameters of RF-BM-ND10
Chipset | nRF52833-QIAA |
Supply Power Voltage | 1.7 V ~ 3.6 V, recommended to 3.3 V |
Frequency | 2402 MHz ~ 2480 MHz |
Transmit Power | -20 dBm ~ +8.0 dBm |
Receiving Sensitivity | -103 dBm for BLE 125 kbps (LE coded PHY) -96 dBm for 1 Mbps PHY |
GPIO | 42 |
Support Protocol | Bluetooth 5.3 Low Energy, Bluetooth Mesh, AoA and AoD, Thread, ZigBee, NFC and Proprietary |
Crystal | 32 MHz |
Package | SMT packaging (1.27-mm half-hole pitch stamp stick) |
Dimension | 33.0 mm × 17.0 mm × 2.1 mm |
Type of Antenna | PCB antenna / IPEX connector / Half-hole ANT interface |
Operating Temperature | -40 ℃ ～ +85 ℃ |
Storage Temperature | -40 ℃ ～ +125 ℃ |
RF-star Launched BLE Module RF-BM-ND10 over Nordic nRF52833
Comparison between Long Range nRF52833 and nRF52832
